AZEVAP - 36,000, 42,000, & 48,000 Horizontal and Vertical Discharge Coolers

Cooler Product Model Page Links

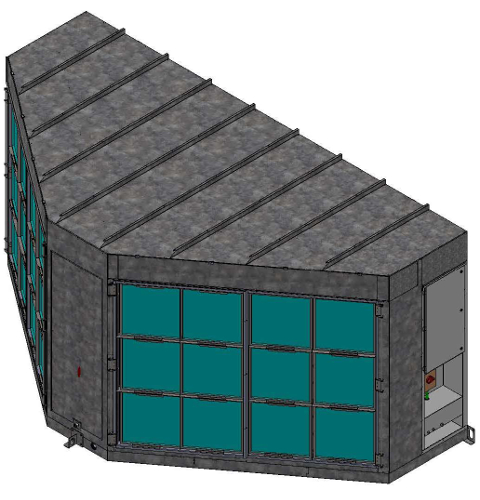

AZFlow 48K Iso

Horizontal Discharge Cooler Click Thumbnails for Alternate Views

thumb 48k H Iso thumb48K h control thumb 48K H back thumb 48K h sect

Vertical Discharge Cooler Click Thumbnails for Alternate Views

thumb vert 48K thumb 48K control thumb 48K vert bottom thumb 48k vert iso sect

36,000, 42,000 and 48,000 CFM UNITS

User Selection Attributes:

  • Horizontal Discharge for Wall Mount
  • Vertical Discharge for Roof Mount
  • Blower Static Head (Duct and Diffuser Losses)
  • With or Without Damper Isolation

Options:

  • Washable inlet Air Filter or Louvered Inlet
  • Graded Materials or All Stainless Steel
  • Filter Differential Pressure Sensor Package
  • Building Differential Pressure Sensor Package
  • Building Area Temperature Sensor Package

Key Dimensions and Weight:


Cooler
CFM		 Discharge
Orientation		 Width
(inches)		 Length
(inches)		 Height
(inches)		 Weight
(Pounds)
36,000 Horizontal 71 96 90 1650
36,000 Vertical 96 127 90 1975
42,000 Horizontal 71 96 90 1700
42,000 Vertical 102 127 90 2175
48,000 Horizontal 71 96 90 1930
48,000 Vertical 114 127 90 2300
