AZFlow™ Technology - Shared Techhnology Features

  • AZFlow™ metered water distribution
  • NO pumps…NO floats….NO sump
  • Stainless Steel Wet Section & Drain Well
  • Stainless Steel spraybar and distribution header
  • Inlet and outlet Air Temperature and Humidity Sensors
  • Graded material cabinet construction
  • High Mechanical Efficiency VFD controlled tubeaxial fan
    Centrifugal fan designs also available
  • Uniform media velocity for high cooling efficiency
  • Units are skid-mounted; shop tested; and designed to be placed in service with minimum field labor. Units utilize plug and play connections.
  • TUV listed cooler
  • UL® listed control and electrical components
  • 24 volt DC control power

AZFlow™ 18,000 and 24,000 cfm Horizontal Discharge Coolers

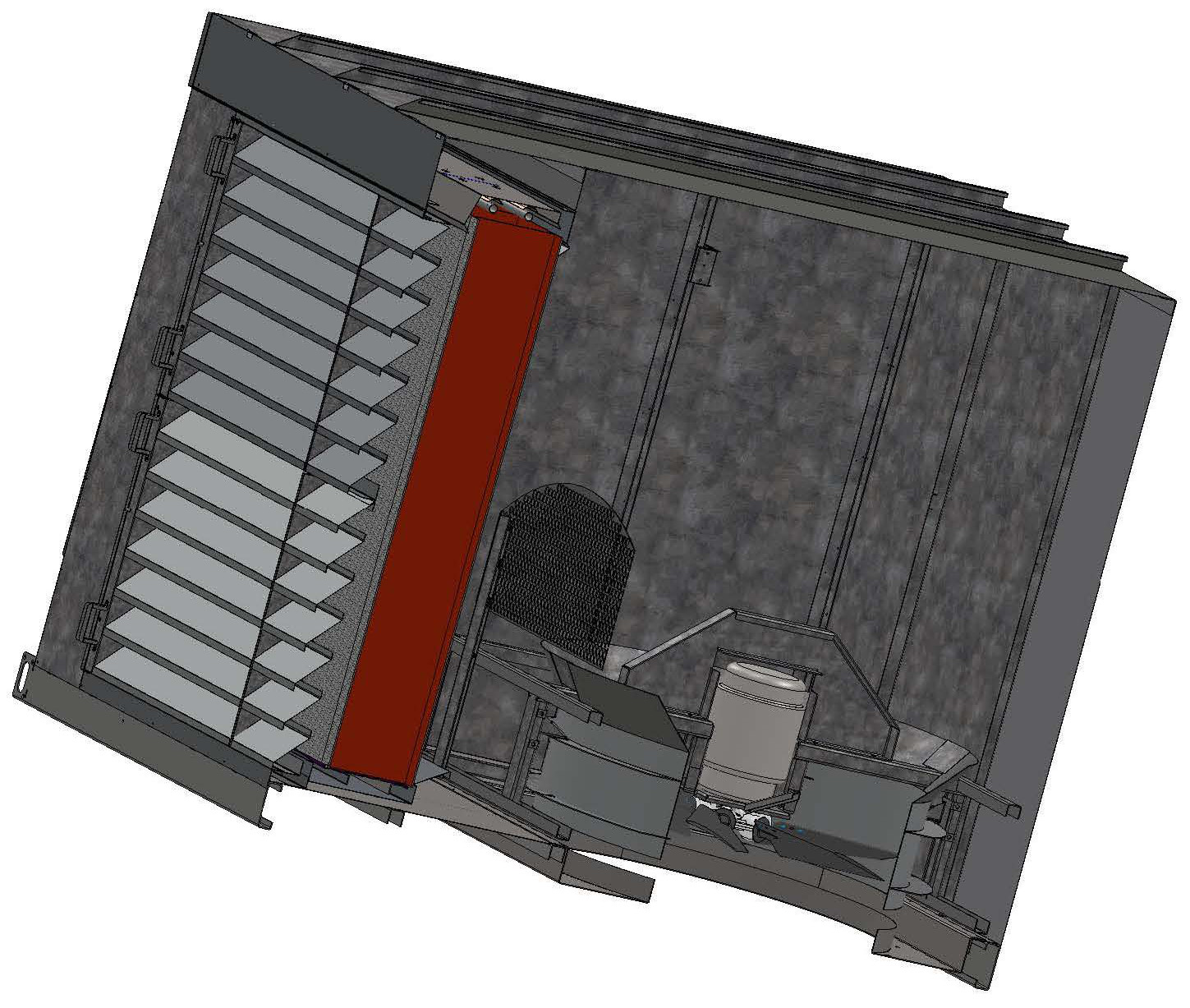

AZFlow™ 18,000 and 24,000 cfm Vertical Discharge Coolers (cutaway Section View)



AZFlow™ 36,000 and 48,000 cfm Horizontal Discharge Coolers


AZFlow™ 4-Wet-Section Double Wide Dual Inlet Fan

AZFlow™

AZEVAP manufactures a next generation evaporative cooler based on patented technology that delivers sustainable high performance standard for cooling products. Unlike the characteristic water hogging, unreliable, marginal performance and high operating and maintenance costs that accompany traditional evaporative cooling systems, AZEVAP coolers provide tangible benefits aligned with the needs of individuals, businesses and their workforces. Additionally, users gain numerous other tangible and intangible benefits with this technology.


AZFlow™ SWSI - Single Wet-Section Single Inlet Fan

18,000 and 24,000 CFM UNITS

User Selection Attributes:

    Blower Static Head

Options:

  • Washable inlet Air Filter
  • Louvered Inlet
  • All Stainless Steel
  • Filter Differential Pressure Sensor Package
  • Building Differential Pressure Sensor Package
  • Building Area Temperature Sensor Package

Key Dimensions and Weight:


Cooler
CFM 		Discharge
Orientation		 Width
(inches)		 Length
(inches)		 Height
(inches)		 Weight
Pounds
18,000 Horizontal 5.0 4.3 480/3 2075
18,000 Vertical 5.4 480/3 900 2175
24,000 Horizontal 5.4 480/3 900 2175
24,000 Vertical 7.4 480/3 900 2175





vspace=60





AZFlow™ 2-Wet-Section Single Inlet Fan

36,000 and 48,000 CFM UNITS

Key Attributes:

  • Stainless steel single wet section
  • Graded material cabinet construction
  • AZFlow™ metered water distribution
  • Metal spraybar and distribution header
  • Control system graphical interface package
  • Direct drive tubeaxial fan
    Centrifugal fan designs also available
  • Roof design or thru-the-wall design
  • NO pumps…NO floats…NO sump
  • Units are skid-mounted; shop tested; and designed to be placed in service with minimum field labor. Units utilize plug and play connections.
  • UL® listed control and electrical components
  • 24 volt DC control power

Options:

    Diffuser
    Fabric ducting
    Insulation package

Specifications and Dimensions:


Certified CFM Motor HP Brake HP Voltage/
Phase		 RPM Static Pressure Media Blower Outlet Velocity Weight
Pounds
36,000 7.5 7.4 480/3 870 .5 2 x 6' x 6' 2680 2684
36,000 12 11.2 480/3 1160 1.0 2 x 6' x 6' 2680 2730
48,000 15 13.6 480/3 1160 .5 2 x 8 x 6' 3573 2920
48,000* 15 13.8 480/3 1160 1.0 2 x 8 x 6' 3573 2920

 *Centrifugal Fan Only

AZFlow™ 2-Wet-Section Double Wide Dual Inlet Fan

36,000 and 48,000 CFM UNITS

Key Attributes:

  • Stainless steel single wet section
  • Graded material cabinet construction
  • AZFlow™ metered water distribution
  • Metal spraybar and distribution header
  • Control system graphical interface package
  • Dual Width Dual Inlet Centrifugal fan design
  • Roof design or thru-the-wall design
  • NO pumps…NO floats….NO sump
  • Units are skid-mounted; shop tested; and designed to be placed in service with minimum field labor. Units utilize plug and play connections.
  • UL® listed control and electrical components
  • 24 volt DC control power

Options:

    Diffuser
    Fabric ducting
    Insulation package

Specifications and Dimensions:


Certified CFM Fan Size Motor HP Brake HP Voltage/
Phase		 RPM Static Pressure Media Blower
Outlet
Velocity		 Weight
Pounds
36,000 44 7.5 6.5 480/3 520 .5 2 x 6' x 6' 2680
36,000 44 10 9.5 480/3 563 1.0 2 x 6' x 6' 2680
48,000 49 10 9.6 480/3 1160 .5 2 x 8' x 6' 3573
48,000 49 15 13.1 480/3 1160 1.0 2 x 8' x 6' 3573



AZFlow™ 4-Wet-Section Double Wide Dual Inlet Fan

72,000 and 96,000 CFM UNITS

Key Attributes:

  • Stainless steel single wet section
  • Graded material cabinet construction
  • AZFlow™ metered water distribution
  • Metal spraybar and distribution header
  • Control system graphical interface package
  • Dual Width Dual Inlet Centrifugal fan design
  • Roof design or thru-the-wall design
  • NO pumps…NO floats….NO sump
  • Units are skid-mounted; shop tested; and designed to be placed in service with minimum field labor. Units utilize plug and play connections.
  • UL® listed control and electrical components
  • 24 volt DC control power

Options:

    Diffuser
    Fabric ducting
    Insulation package

Specifications and Dimensions:


Certified CFM Fan Size Motor HP Brake HP Voltage/
Phase		 RPM Static Pressure Media Blower Outlet Velocity Weight
Pounds
72,000 66 15 13.2 480/3 320 .5 4 x 6' x 6'
72,000 66 20 18.9 480/3 563 1.0 4 x 6' x 6'
96,000 73 20 19.6 480/3 320 .5 4 x 8' x 6'
96,000 73 25 25 480/3 350 1.0 4 x 8' x 6'
